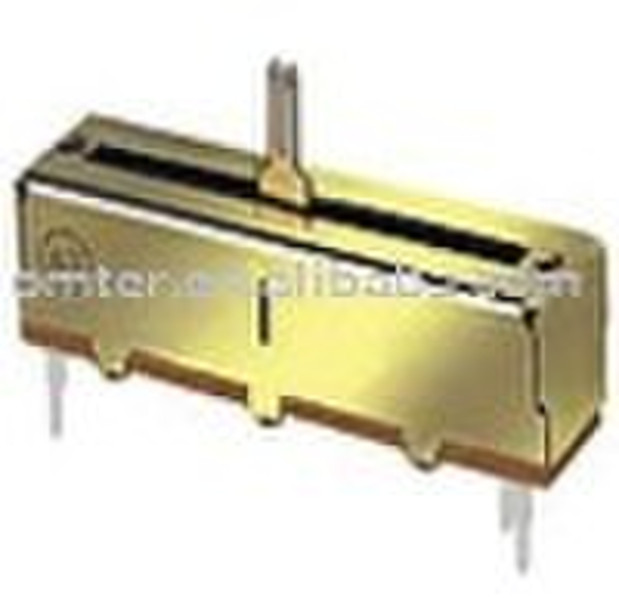

slide potentiometer
Paul Ye
Contact person
Basic Information
| Place of Origin | Zhejiang China (Mainland) |
|---|---|
| Brand Name | OMTER |
| Model Number | S4581G-oo3 |
slide potentiometerModel: S4581G-oo3Total Resistance:500Ω-1MΩ Total Resistance Tolerance :±20% Resistance Taper: A,B,C,D Sliding Noise: Less than 100mV Insulation Resistance: More than 10MΩat DC 250V Withstand Voltage: 1 minute at AC 300V Residual Resistance: Term.1 2:Less than 10Ω Term.2 3:Less than 30Ω Gang Error(Dual Unit): -40dB 0dB±3dB Rated Voltage Linear Taper B: 15mm:AC 100V 20mm 30mm 45mm 60mm:AC 200V Other Tapers: 15mm:AC 50V 20mm 30mm 45mm 60mm:AC 150V Rated Power(Single Unit/Dual Unit) Linear Taper B:15mm:0.05W/0.025W 20mm:0.1W/0.05W 30mm:0.2W/0.1W 45mm:0.25W/0.125W 60mm:0.2W/0.2W Other Tapers:15mm:0.025W/0.012W 20mm:0.05W/0.025W 30mm:0.1W/0.05W 45mm:0.125W/0.06W 60mm:0.1W/0.1W
Delivery terms and packaging
Packaging Detail: in carton Delivery Detail: 7days
